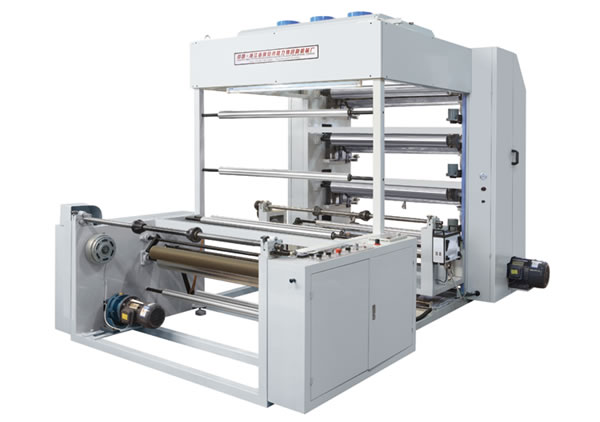

YRN 800/1600 NON-WOVEN PRINTING MACHINE
Characteristics:
Easy operation,softness starting and accurate chromatically.Automatic counting controller can enactment the quantity of printing discretional which it is can automatic stopping while severing material.The printing format platen to upper and down by hand,and transmission ink through the web platen and uniformity of ink-color,which is the drying system has work in running with high speed,and automatic turn off while the machine is stopping.They have such features so good quality,low consumption.Complete automatic control device,steady performance,easy to operate and maintenance,etc.They are using the sensitive gum resin flexible format as the forme style.It is suitable for polystyrene printing and the packing materials such as polystyrene packing,cellophane paper and rolling paper,etc.
Main Technical Parameters:
|
Model
|
YRN-41000
|
YRN-41200
|
YRN-41400
|
YRN-41600
|
|
Max.Width of Printing Material
|
1000mm
|
1200mm
|
1400mm
|
1600mm
|
|
Max.Width of Printing
|
960mm
|
1160mm
|
1360mm
|
1560mm
|
|
Scope of Printing Length
|
200-800mm
|
200-800mm
|
200-800mm
|
200-800mm
|
|
Max.Diameter of Rolling Material
|
800mm
|
1000mm
|
1200mm
|
1400mm
|
|
Printing Speed
|
5-50m/min
|
5-50m/min
|
5-50m/min
|
5-50m/min
|
|
Format Materials thickness
|
4mm
|
4mm
|
4mm
|
4mm
|
|
Overall Power
|
15kw
|
17kw
|
19kw
|
21kw
|
|
Net Weight
|
1700kg
|
1900kg
|
2100kg
|
2300kg
|
|
Overall Dimensions(L*W*H)
|
3600*2100*2500mm
|
3600*2300*2500mm
|
3600*2500*2500mm
|
3600*2700*2500mm
|
|
|
