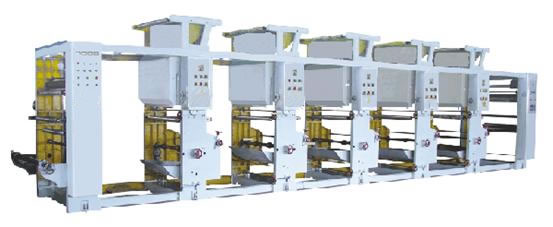

YAS 600/1200D GRAVURE PRINTING MACHINE

The machine is combination type .Printing color unit can be increased or decreased according to customer's requirement. With 360 degree of installment system, ease of operation, and stability. The parts of transmission is adopted with gear structure with full sealing lubrication. The tension system is adopted with magnetic powder clutch controller, the parts of rewinding is adopted with torque motor. With double oven passage design. Upper and lower oven using large centrifugal blower. fast drying, fast printing. Winding and rewinding are both double working mechanisms to make the material complete with non-stop

Length of printing

600-1200mm

Breadth of printing

250 -800mm

The maximum printing speed

10 -60m /min

Precision of overprint

0.06 -0.2mm

Miniature power

air pressure guide rail rise and drop

Weight of Machine

4500kg , 5500kg , 6000kg , 7000kg

Total power

19.5kw



1300mm

Overall dimensions

12000x2100 x2400(800model)
